In modern industrial settings, control panels are essential for managing equipment, ensuring safety, and streamlining workflows. At the core of these panels are operator interface devices like push buttons, selector switches, and pilot lights. While small in size, these components play a big role in machine control and communication—allowing operators to issue commands, monitor equipment status, and respond to system behavior in real time.
In this blog, we’ll break down the function of each device—whether it’s an industrial push button, electrical selector switch, or indicator light—and explain their differences to help you choose the right one for your application.

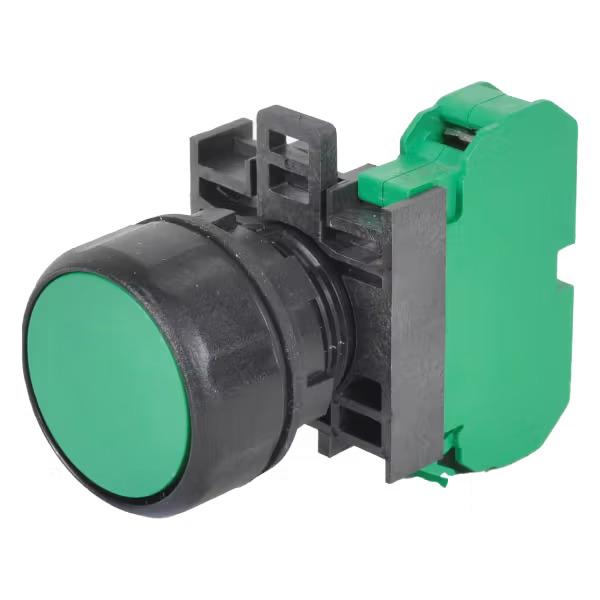

What Are Push Buttons?
A push button is a mechanical switch that opens or closes an electrical circuit when pressed. It is one of the most common components used in control systems to manually start or stop a process.
Types of Push Buttons:
- Momentary Push Buttons: Activate only while being pressed (e.g., start or stop buttons).
- Maintained Push Buttons: Stay in the on or off position until pressed again.
- Illuminated Push Buttons: Include an internal light to show operational status.
Common Uses:
- Starting or stopping motors
- Emergency stop functions
- Resetting alarms or faults
Pros:
- Simple and intuitive
- Inexpensive and reliable
- Easy to install
Cons:
- Limited to binary input (on/off)
- Requires physical access
In most cases, an industrial push button is a go-to solution for manual controls in production lines and machinery interfaces.

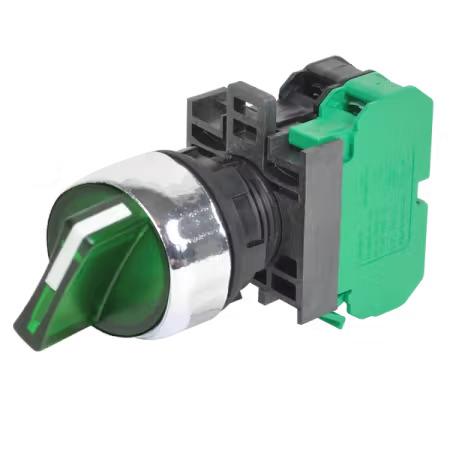

What Are Selector Switches?
An electrical selector switch is a rotary switch used to select between multiple circuit paths. Instead of simply turning something on or off, it allows the operator to choose between modes or operations.
Types of Selector Switches:
- 2-position or 3-position switches
- Key-operated switches (enhance security)
- Spring-return selector switches (return to the default position after release)
Typical Applications:
- Switching between manual, automatic, and off modes
- Selecting between two or more motors
- Setting machine parameters or operating modes
Pros:
- Allows for multiple selections
- Durable and user-friendly
- Suitable for systems needing different operational modes
Cons:
- Takes up more panel space than push buttons
- Can be misused without proper labeling
Selector switches are commonly used in motor control centers and process systems where operators need flexibility without navigating digital menus.

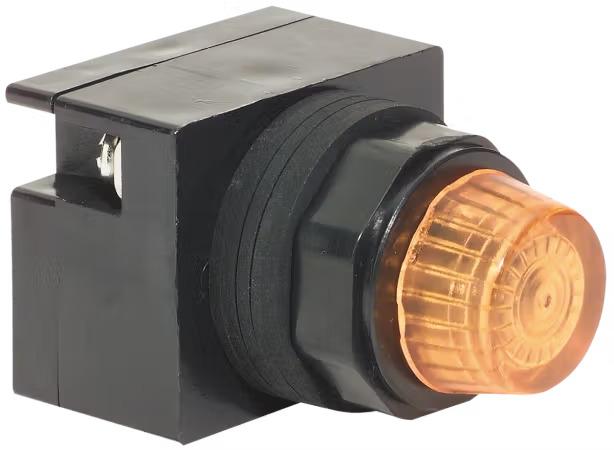

What Are Pilot Lights?
A pilot light, also known as an indicator light, is a visual signal used to indicate the status of a machine or process. It does not control any equipment but provides operators with immediate visual feedback.
Color Coding and Their Meanings:
- Red: Indicates a fault, stop condition, or emergency
- Green: Indicates normal operation or running status
- Amber/Yellow: Warning or standby status
- Blue/White: Optional use for specific conditions or custom indicators
Uses of Indicator Lights:
- Confirming power supply or system readiness
- Indicating motor running or stopped status
- Showing alarms or maintenance requirements
Pros:
- Easy to understand
- Increases safety and situational awareness
- Helps with quick diagnostics
Cons:
- No control functionality
- Can be overlooked in bright environments if not placed properly
Using an indicator light in your panel layout enhances communication between machines and operators, reducing errors and improving response times.
Choosing the Right Device for Your Application
When designing or upgrading a control panel, choosing the right interface device depends on several important factors:
- Function Needed:
- Use an industrial push button for simple start/stop control.
- Use an electrical selector switch for mode selection or multi-option settings.
- Use an indicator light to show machine status, warnings, or system readiness.
- Environmental Conditions:
- Ensure components are rated for the environment (e.g., IP ratings for dust and water).
- Choose durable materials for high-vibration or extreme temperature areas.
- User Access and Safety:
- Install key-operated selector switches for restricted access.
- Use bright, clear pilot lights for better visibility and faster decision-making.
- Panel Space and Design:
- Push buttons and pilot lights are compact and ideal for dense layouts.
- Selector switches require more space but offer flexible control.
- Integration with Other Systems:
- Ensure compatibility with PLCs, relays, and other industrial motor control products.
By selecting the right device for the job, you not only improve operational efficiency but also boost the safety and usability of your system.
Push buttons, selector switches, and pilot lights are essential elements in industrial control systems. While a push button initiates action, a selector switch chooses how the system behaves, and a pilot light tells you what’s going on. Each has its unique role, and together they create an intuitive and reliable operator interface.
Understanding their differences helps engineers and technicians build smarter, safer, and more user-friendly panels. Whether you’re setting up a simple machine interface or a complex automated process, selecting the right combination of industrial push button, electrical selector switch, and indicator light ensures your control system performs at its best.
