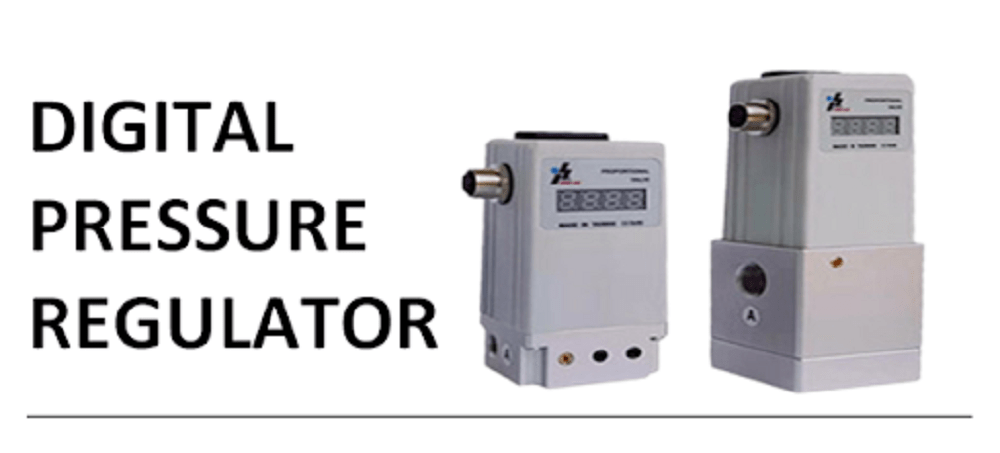

Today. Pressure regulators are widely found in various domestic and industrial applications in which it’s crucial to keep the pressure, temperature and flow of fluid under control for precise operations. A digital pressure regulator is a device that can control the incoming pressure and reduce it to the user-set value so that it cannot go up from the safe limit of the system and the user can have the optimal performance from the fluid system. They are designed to provide strong control over the pressure by making the necessary changes in the passage of the flowing fluid. Without an electronic pressure regulator, you may often see pressure increase or decrease. Both of these conditions can compromise the quality and safety of the system.
A pressure regulator is commonly used in gas grills to regulate the propane gas on the desired pressure, in heating furnaces, and in medical and dental pneumatic equipment to operate them precisely for providing quality treatment. They are also widely used in the manufacturing industry to maintain the quality of the end products.
Here we have listed some places where these devices are used:
Quality Welding:
In the manufacturing of vehicles, quality welding is one of the essential processes. The build quality and strength of the vehicle depend upon the quality welding. The gases that are used in the welding process come out with a high pressure but for quality welding, it’s crucial to keep the pressure of the gases low. Here a digital pressure regulator comes in handy. It reduces the pressure of the inlet pressure and maintains a constant state of the pressure so that all the parts of the vehicle frame can be joined firmly.
Paint Job:
In this modern age, the paint job on vehicles is done with the help of an automated system. These systems contain an electric pressure regulator to maintain the correct pressure so that the paint can be done on all the body parts accurately to provide a beautiful look and an ambient finish.
Medical Devices:
A digital pressure regulator is widely used in medical devices to manage the pressure of air and other essential gases. Control over pressure helps doctors in providing quality treatment to patients. For instance, in ventilators, a pressure regulator regulates the air and other essential gases on the set value of pressure so that the patient can breathe normally.
Large Furnaces:
Pressure regulators are used compulsorily in the large furnace to control and manage the pressure of the gas. Large furnaces are utilised to make bakery items which require maintaining a specific temperature for making the right edible. For this, a digital pressure controller is installed in the pipeline that keeps the pressure of the gas equal to a user-set value so that the required temperature can be maintained inside the furnace.
Pill Coating:
This is a process that requires high accuracy and precision. Medicines are used for the treatment of patients and most of them are coated with the medicine. For this coating, a pressure regulator maintains the required pressure so that the correct amount of medicine can be sprayed on each tablet and all the manufactured tablets have the same amount of the medicine. The manufacturer of medicines has to follow various strict regulations in order to manufacture a high-quality product and in this regard, a pressure regulator is very helpful.
How Does a Pressure Regulator Work?
This is a common question and several people are seeking to get the right answers, here it is explained by the Jenny Walker of Fluid Controls Ltd: “Pressure regulator is a device that functions to decrease the inlet pressure to a low output pressure and maintains this pressure while having fluctuations in the inlet pressure.”
Below we have listed the components of the regulator to make it more understandable:
Loading Element:
A spring-loaded poppet (valve) is used as the loading (restrictive) element. It contains either an elastomeric or thermoplastic seal that is used to seal the valve seat. When the spring applies forces the seal is removed and the fluid passes through the valve and the outlet pressure starts increasing. When the outlet pressure of the digital pressure regulator reaches the set point, then the force that is generated by the sensing element resists the force of the spring and closes the valve. Whenever the pressure drops below the set value the spring pushes the poppet away from the seat away so that the additional fluid can flow to maintain the set value of the pressure.
Sensing Element:
A sensing element senses the amount of force applied to the loading element and the pressure changes and sends a signal to the control element which is known as the feedback signal. The controller receives the feedback signal and after reading it defines the necessary actions that should be carried out to maintain the required value of pressure.
Control Element:
The control element serves as a central processing unit, it understands the feedback signal and provides the set of instructions to the load element so that it can precisely make adjustments in the size of the orifice to keep the pressure equal to the user-set value.
At this present time, the electronic regulator is available in various types and each type has its own flow characteristics and specifications. They can provide the expected performance if utilized in the right system and at the right place. That’s why it’s important to choose the pressure regulator with great care.
Benefits of using Pressure Regulators:
Let’s have a look at the following benefits of pressure regulators:
- Keeps the pressure and other process variables under control.
- Reduces the risk of damages.
- Enhances the lifespan of the fluid system.
- Cuts down the waste.
Final Words:
Today, digital pressure regulators have become too famous among people because of their excellent performance and high controllability. A pressure regulator ensures the safety and superior management of fluid or gas pressure. They are used in various sectors to maintain quality and the safe operations of different systems. That’s why pressure regulators have become a trademark of quality. But for having an excellent performance it’s necessary to use the appropriate type, size and shape of the regulator in the system that has the ability to fulfil the requirement of the system.
