In today’s digital world, databases form the backbone of almost every system. From online shopping and hospital records to financial transactions, most services depend on a database to function smoothly.
Databases are easier to design and manage with the help of Entity-Relationship (ER) diagrams.
What is an ER Diagram?
An ER diagram (Entity-Relationship diagram) is a tool that represents how data is structured and connected in a database. It acts like a map that shows the main elements of a system, which are known as entities, and the links between them.
Entities usually represent real-world objects such as customers, employees, students, products, or orders. Each entity has attributes, which are the details that describe the entity. For example, a customer entity may include attributes like name, address, and phone number, while a product entity might have product name, price, and category.
The other important part of an ER diagram is the relationships, which explain how entities interact with each other. For instance, a customer places an order, a teacher teaches a class, or a doctor treats patients. These relationships help in understanding how different pieces of data are linked together in a meaningful way.
An ER diagram works like a blueprint for a database. Instead of directly creating tables and writing complex code, database designers first use ER diagrams to plan the structure in a clear and simple format.
This helps to make sure that nothing important is missed and the data is organized logically. Moreover, ER diagrams are not only helpful for developers but also make it easy for non-technical team members, like managers or clients, to understand the system without needing deep technical knowledge.
Let’s understand with a short, real-life ER diagram example in simple words.
Example: School Database ER Diagram
Imagine we are creating a database for a school. We need to store details about students, teachers, and classes.
- Entities (Main Objects):
- Student → has attributes like Student_ID, Name, and Age.
- Teacher → has attributes like Teacher_ID, Name, Subject.
- Class → has attributes like Class_ID, Class_Name, Room_No.
- Student → has attributes like Student_ID, Name, and Age.
- Relationships (Connections):
- A Student attends a Class.
- A Teacher teaches a Class.
- A Student attends a Class.
Explanation:
- The Student entity connects to the Class entity through the relationship attends.
- The Teacher entity connects to the Class entity through the relationship teaches.
- This shows that many students can attend one class, and one teacher can teach multiple classes.
Why Use Online ER Diagram Tools?
Online ER diagram tools are useful because they make drawing and sharing diagrams much easier.
- You don’t need to install heavy software; you can just open it in your browser.
- Your work is saved automatically, so you don’t lose anything.
- You can open your diagram anywhere, on your laptop, office computer, or even at home.
- If you are working in a team, everyone can see and edit the diagram together in real time.
- They also give ready-made shapes for entities and relationships, so you don’t have to draw everything from scratch.
- You can easily share the diagram with a link or download it as a picture or PDF.
There are many online ER diagram tools which is helpful.
1. ChartDB
If you’re looking for a modern, lightweight, and intuitive ER diagram tool, ChartDB should be your first choice. Unlike traditional tools that require manual setup, ChartDB makes schema visualization effortless. You can simply upload your SQL files, and it instantly generates clean, professional ER diagrams for you.
Key Features of ChartDB:
- Automatic ERD Generation: No need to manually create entities and relationships, upload your schema, and ChartDB does the rest of the work.
- Supports Complex Schemas: Handles databases with hundreds of tables without slowing down.
- Collaboration Ready: Share your diagrams with teammates through links, no extra setup needed.
- Cloud-Based: Access from anywhere, without installations.
- Clean Visuals: Diagrams are easy to read and presentation-ready.
Why ChartDB Stands Out:
While most tools focus on just diagramming, ChartDB goes further by making schema exploration interactive. You can zoom in on specific tables, highlight relationships, and even generate diagrams when your SQL has no foreign keys defined. This is very helpful for developers who have to work with messy or unorganized databases.
If you want speed, simplicity, and clarity in your ER diagrams, ChartDB is one of the best tools available today.
2. dbdiagram.io
dbdiagram is a lightweight and super-easy-to-use tool for creating ER diagrams. It’s especially popular among developers because you can design diagrams just by writing a few lines of code in a simple Domain-Specific Language. If you prefer visuals, it also lets you drag and drop to arrange entities and relationships.
One of the biggest advantages of dbdiagram is how quickly you can import and export database schemas. It also supports popular databases like MySQL, PostgreSQL, SQL Server, and SQLite. You can even generate SQL scripts directly from your diagrams, which makes it handy for both database design and documentation.
Since it’s cloud-based, you can share your diagrams easily with a link. It is free for your personal use. But paid plans are also available if you need more features.
3. Lucidchart
Lucidchart makes creating diagrams easy and collaborative. Whether you need flowcharts, process maps, ER diagrams, or even UI mockups, it provides a simple drag-and-drop interface and ready-made templates to speed up the work.
It is cloud-based. In this, Multiple people can work on the same diagram at the same time, making it great for teamwork. It also connects with tools like Google Workspace, Microsoft Office, and Slack, so you can fit it smoothly into your existing workflow.
Lucidchart is useful for both beginners who just need simple visuals and professionals handling more complex projects.
It offers a free plan with limited documents and templates. Enterprise plans provide enhanced security and full access to all suite tools for larger organizations.
4. DrawSQL
DrawSQL is a modern online tool built especially for designing and sharing database diagrams. Since it’s focused only on databases, the interface feels clean and simple.
You can drag and drop tables, add relationships, and see your schema take shape in minutes. It supports multiple database engines like MySQL, PostgreSQL, SQL Server, and SQLite, and even lets you generate SQL scripts directly from your diagrams.
Another big advantage of DrawSQL is teamwork. It is cloud-based. In this, you can easily share a link with your teammates or clients, allowing them to view or edit, depending on the access you give. The platform also supports real-time collaboration, so everyone can stay aligned on the database design.
The free version is for smaller projects and individual developers, but if you want private projects and advanced team features, you can also buy the paid plans.
5. Creately
Creately is a versatile online tool that makes creating ER diagrams simple with its drag-and-drop interface. It is not limited only to databases; you can also design flowcharts, org charts, and mind maps in it.
It is cloud-based, which is why teams can work with integrations like Google Drive and Slack. Creately fits well into any workflow and is easy to use for both technical and non-technical users.
6. DBeaver
DBeaver is a popular open-source database management tool that also supports ER diagrams. Unlike most online tools, it’s a desktop application, which makes it powerful for developers and database admins who want more control. With DBeaver, you can connect to visualize schemas and generate ER diagrams automatically.
It is especially helpful if you work with databases every day, as it lets you build queries, edit data, and create diagrams all in one place. It may seem more technical than cloud-based tools, but its flexibility and support for many types of databases make it popular with professionals.
7. QuickDBD (Quick Database Diagrams)
QuickDBD is designed for speed. You can type your schema using simple shorthand, and it instantly creates an ER diagram.
It is best for quickly prototyping database designs.
8. Vertabelo
Vertabelo is a powerful online database modelling tool with advanced features like forward and reverse engineering. It supports collaboration and works well for large-scale projects.
It is best for professionals working on enterprise-level databases.
9. Gliffy
Gliffy is an easy-to-use online diagramming tool. It may not be as specialized for ER diagrams as others, but it works well for simple database designs and integrates with Atlassian products.
It is best for teams already using Jira or Confluence.

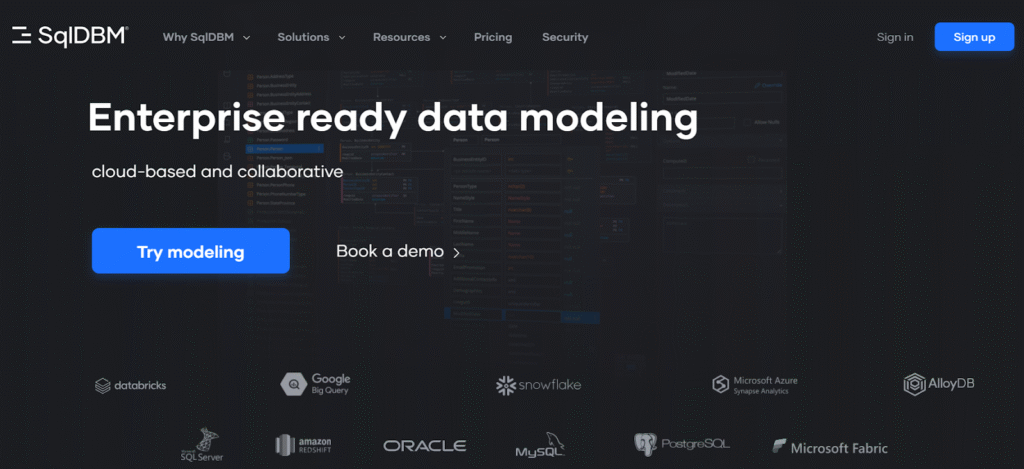

10. SQLDBM
SQLDBM (SQL Database Modeler) is a professional online tool for database modeling. It supports forward and reverse engineering, version control, and collaboration.
It is best for database architects working on complex projects with strict documentation needs.
Conclusion
ER diagrams are important for anyone working with databases, whether you are creating a new system or trying to understand an existing one. Online ER diagram tools have made this process much faster and more collaborative.
While all ten tools on this list are useful, all are modern, efficient, and user-friendly options for instantly turning your SQL schemas into professional diagrams.
If you’re looking for a tool that saves time and removes the complexity of manual diagramming, these are a good start.
