Introduction
Transformers are essential components in power distribution and transmission systems. Their reliable operation heavily depends on maintaining optimal insulation and moisture-free internal environments. One of the most efficient solutions for ensuring this condition is the use of a dry air generator for transformer systems. This article explores the working principle, importance, benefits, and operational aspects of this equipment, offering a complete guide for engineers and utility providers.
What is a Dry Air Generator?

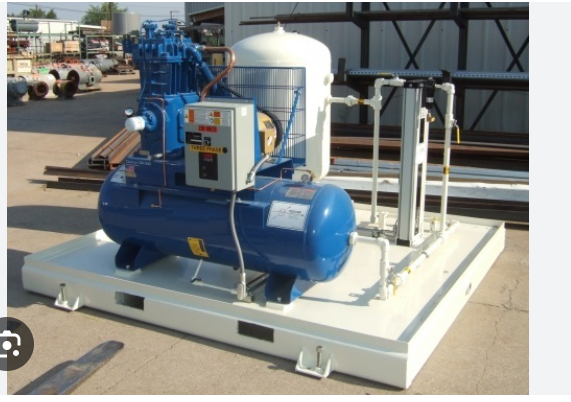

A dry air generator for transformer is a system designed to produce dry air with very low humidity levels, typically below a dew point of -40°C. This air is then used to replace or prevent moisture-laden air from entering transformers during maintenance or installation. Moisture is a major cause of insulation breakdown in transformers, and controlling it is critical for long-term transformer health.
Why Transformers Need Dry Air
Moisture presence in transformers can lead to numerous operational problems. It can deteriorate the insulation properties of transformer oil and solid insulation materials like paper and pressboard. Additionally, moisture can increase the chances of partial discharge and electric breakdowns. To prevent these issues, dry air is introduced into the transformer tank during servicing, transportation, or before oil filling.
Working Principle of Dry Air Generator
The working principle of a dry air generator for transformer involves several stages:
- Air Intake: Ambient air is drawn into the machine through a filtration system that removes dust and impurities.
- Compression: The air is compressed using a built-in air compressor.
- Cooling and Moisture Separation: The compressed air is cooled to condense and remove water vapor.
- Drying: The air is passed through desiccant dryers or adsorption dryers to further remove moisture content, reaching dew points as low as -50°C.
- Output: The dry air is then supplied to the transformer tank through hoses or pipelines.
Key Components
A dry air generator for transformer typically consists of the following components:
- Air Compressor: Compresses and feeds air into the drying system.
- Pre-filters: Remove dust and oil vapors from the ambient air.
- Refrigeration Unit: Reduces the air temperature to facilitate moisture removal.
- Desiccant Towers: Filled with materials like activated alumina or molecular sieves to absorb moisture.
- Dew Point Meter: Monitors the moisture content of the outgoing dry air.
- Control Panel: Manages the operation and monitors system performance.
Applications of Dry Air Generator
The dry air generator for transformer is used in various scenarios, including:
- Transformer oil filtration or replacement
- Transformer repair or maintenance activities
- Drying newly installed transformers
- Transporting transformers over long distances
- Preventing condensation during cold weather installations
Advantages of Using Dry Air
Dry air offers several advantages over using nitrogen or vacuum in transformer maintenance:
- Cost-Effective: Eliminates the need for purchasing and storing nitrogen cylinders.
- Environmentally Friendly: Uses atmospheric air, reducing environmental impact.
- Continuous Operation: Can provide dry air on demand during long maintenance procedures.
- Safety: Unlike nitrogen, dry air supports breathing, offering a safer work environment.
Safety Considerations
While a dry air generator for transformer is generally safe, certain precautions should be observed:
- Ensure proper grounding of the equipment to avoid electrical hazards.
- Maintain and replace filters and desiccants regularly.
- Monitor dew point and pressure levels continuously.
- Use certified hoses and fittings to prevent air leaks.
Maintenance of the Equipment
Regular maintenance is essential for the efficient performance of a dry air generator for transformer:
- Filter Replacement: Change filters according to the manufacturer’s schedule.
- Desiccant Regeneration: Regenerate or replace desiccants to ensure proper moisture removal.
- Compressor Servicing: Keep the air compressor lubricated and clean.
- Leak Checks: Inspect for and seal any air leaks.
- System Calibration: Check and calibrate dew point meters and pressure gauges regularly.
Factors to Consider Before Buying
When selecting a dry air generator for transformer, consider the following factors:
- Capacity: Measured in cubic meters per hour (m³/h), it should match the transformer volume.
- Dew Point Performance: Lower dew point levels indicate higher efficiency.
- Power Consumption: Evaluate energy efficiency for long-term cost savings.
- Portability: Some units are mobile, which is beneficial for on-site maintenance.
- After-Sales Service: Check for available customer support and spare parts.
Comparison with Other Drying Methods
The dry air generator for transformer is often compared with vacuum drying and nitrogen purging. While vacuum drying is effective, it requires heavy equipment and can be time-consuming. Nitrogen purging is quicker but involves handling pressurized gas cylinders. Dry air systems offer a balance of convenience, safety, and efficiency, making them suitable for most maintenance environments.
Real-Life Usage Scenarios
Utilities across the world use dry air generator for transformer units during large substation upgrades, installations of new power transformers, and during outages when transformers must be kept dry to prevent contamination. These machines have proven particularly useful in high-humidity regions and during rainy seasons.
Future Developments
Technology is continuously evolving in the field of transformer maintenance. Newer models of dry air generator for transformer systems are integrating smart controls, IoT monitoring, and automatic dew point adjustment. These features will enhance operational precision and make maintenance even more efficient.
Conclusion
The dry air generator for transformer is a vital tool for ensuring the safe and efficient operation of power transformers. By removing moisture from the internal environment, it safeguards insulation materials and enhances the transformer’s lifespan. With low operating costs, environmental friendliness, and reliable performance, this equipment has become a standard solution for transformer maintenance worldwide. Proper selection, operation, and maintenance of the system can yield long-term benefits for power utilities and industries relying on high-voltage transformers.
